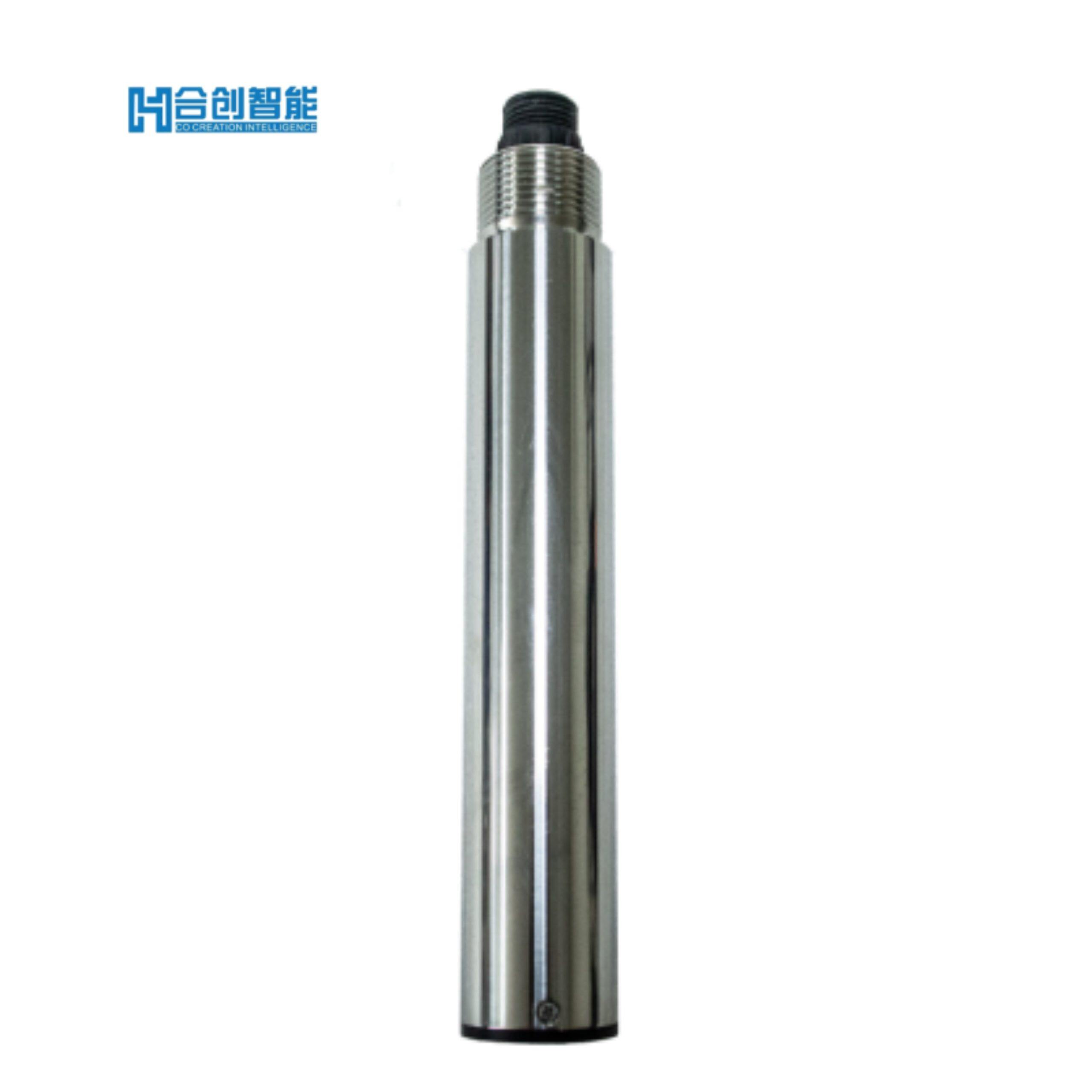

Product Description:

The integrated online stainless steel turbidity sensor operates on the scattered light measurement principle. When a light beam passes through a water sample, suspended particles cause light scattering. By measuring the intensity of scattered light at 90 degrees to the incident beam and comparing it with internal reference values, the sensor calculates turbidity levels and outputs linearized final values through advanced signal processing.

Product Attributes:

Measurement Principle：Scattered Light Method
Measurement Range：0-1000.0 NTU
Resolution：0.1 NTU / 0.1°C
Accuracy：±5% F.S.
Calibration：Two-point calibration
Temperature Compensation：Automatic (Pt1000)
Output：RS-485 (Modbus/RTU)
Operating Conditions：0-50°C, <0.2MPa
Storage Temperature：-5 to 65°C
Housing Material：304 Stainless Steel, ABS
Installation：Immersion type, 3/4″NPT pipe thread
Cable Length：Standard 10m (customizable)
Power Consumption：0.3W@12V
Power Supply：12-24 VDC
Protection Rating：IP68
