Product Description:

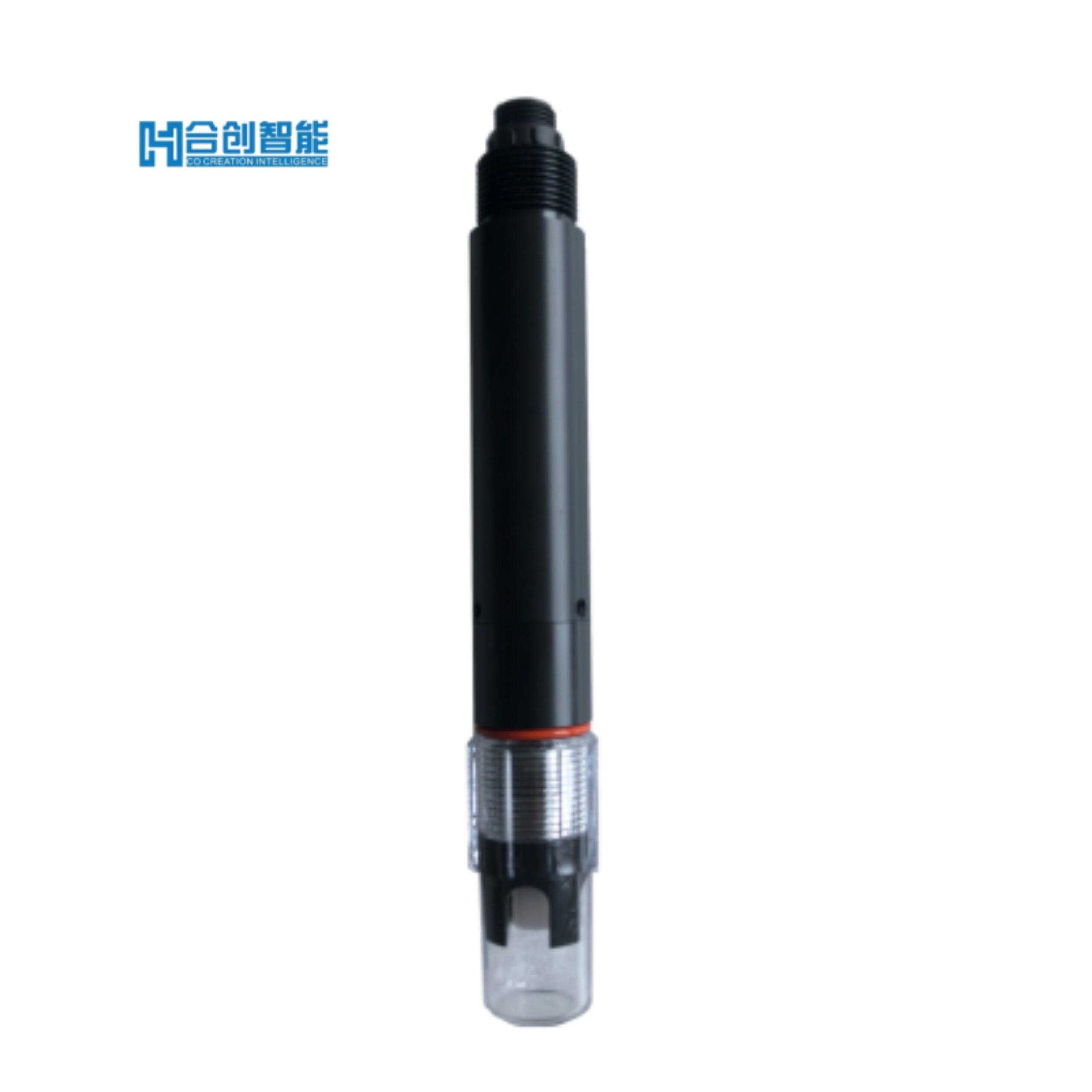

The integrated online potassium ion sensor features a PVC membrane-based copper shell core electrode for detecting potassium ion concentration in water. With automatic temperature compensation, it ensures fast, simple, accurate, and cost-effective measurements for various water monitoring applications.

Product Attributes:

Measurement Method：Ion Selective Method
Measurement Range：0-100 mg/L
Resolution：0.1 mg/L
Accuracy：±5% F.S.
Operating Temperature：0-50°C
Operating Pressure：<0.2 MPa
Temperature Compensation：Automatic (Pt100)
Power Supply：12-24 VDC
Output Signal：RS-485, Modbus/RTU protocol
Wetted Materials：PVC, POM
Installation：3/4″ NPT thread, immersion type
Cable Length：Standard 10 m (customizable)
Calibration：Two-point calibration
Power Consumption：<0.5 W
Protection Rating：IP68

Applications:

Agricultural irrigation water, hydroponic systems, industrial process monitoring, and water quality assessment.
