Product Description:

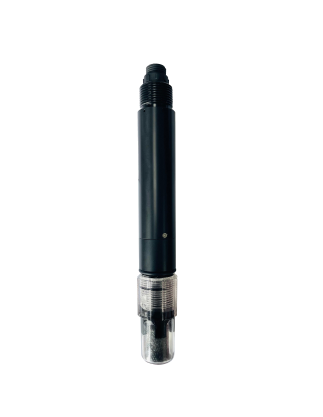

This product adopts an industrial online electrode, which is replaceable. The spherical electrode design increases the measurement contact area compared to a flat structure, providing faster response and more accurate measurements. With a built-in temperature sensor for automatic temperature compensation, it is suitable for long-term online monitoring applications.

Product Attributes:

Measurement Method：Glass Electrode Method
Measurement Range：0-14 pH
Accuracy：±0.1 pH
Resolution：0.01 pH
Operating Conditions：0-50°C; <0.2MPa
Calibration：Two-point calibration
Response Time：60 sec (T90)
Temperature Compensation：Automatic (NTC)
Power Supply：12-24 VDC
Protection Rating：IP68 (submersion <20m)
Output Signal：RS-485 (Modbus/RTU)
Service Life：1 year or more (sensor)
Cable Length：Standard 10m (customizable)
Housing Material：POM
Installation Thread：3/4″ NPT

Applications:

Conventional river water quality monitoring
