Product Description:

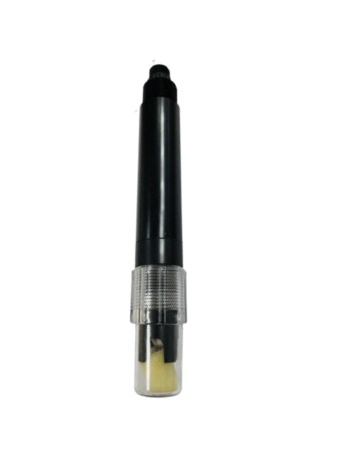

This industrial online digital ORP sensor features a spherical platinum electrode design that provides larger surface area contact compared to flat electrodes, resulting in faster response and more accurate measurements. Ideal for long-term continuous monitoring in various water quality applications.

Product Attributes:

Measurement Method:Platinum Electrode Method
Measurement Range:-1500 to +1500 mV
Accuracy:±6 mV
Resolution:1 mV
Operating Conditions:0 to 50°C; < 0.2MPa
Calibration:One-point calibration
Response Time:10 sec (T90)
Power Supply:12-24 VDC
Output Signal:RS-485, MODBUS/RTU protocol
Product Dimensions:Ø30mm × 189mm
Protection Rating:IP68 (submersion <20m)
Service Life:1 year or more (sensor)
Cable Length:Standard 10m (customizable)
Housing Material:POM (customizable)
Installation Thread:3/4″ NPT

Applications:

River water monitoring, industrial wastewater, environmental water treatment, food & beverage, fermentation process monitoring, and other online monitoring applications.
