Product Introduction

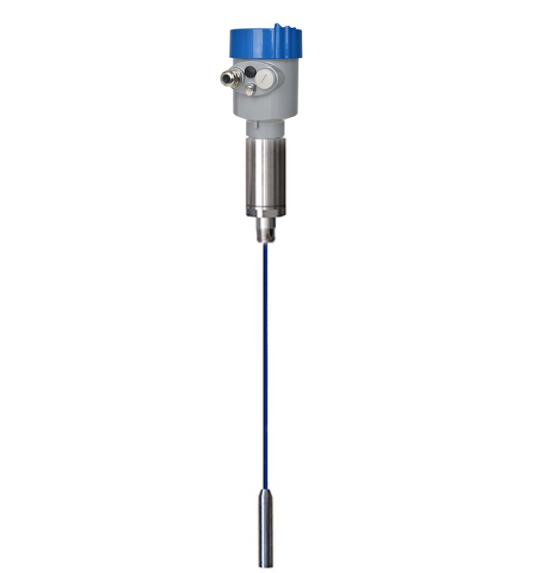

The HCSP-Z17 RF Admittance Level Transmitter is a continuous level measurement product designed based on the RF admittance principle. It offers high stability, high sensitivity, and broad applicability. Compared to traditional capacitive level switches, this RF admittance level transmitter features a modular design, allowing for simple and convenient configuration. Once set up, it operates reliably and is maintenance-free for life. It enables users to intuitively monitor equipment status and promptly address any issues, ensuring safe and reliable performance even in complex industrial environments.

Performance Index
Power Supply: 13 VDC ~ 35 VDC
Output: 4 ~ 20 mA
Ambient Temperature: -40 ℃ ~ 70 ℃
Process Temperature: -100 ℃ ~ 800 ℃
Linearity: 0.5 %
Repeatability: 0.1 %
Time Delay: 1 ~ 30 s (adjustable)
Spark Protection: Built-in spark protection circuit (for sensor)
Electrical Connection: M20 × 1.5
Cable: Dedicated connection cable between remote electronics unit and sensor. Standard 5 m, max. 50 m.
Process Connection: BSPT thread (Standard) / Flange mount (Optional)
Housing Protection: IP66
Certification: ExiaIICT4

Main Parameters
Probe Type: Insulated Flexible Cable
Process Temperature: -40 to 140 °C
Process Pressure: -0.1 to 4.0 MPa
Output Signal: 4 to 20 mA
Process Connection: 3/4″ BSPT Thread (Standard) / Flange Mount (Optional)
Explosion Protection Rating: ExiaIICT4 (Optional)
Typical Applications: Conductive liquids, conductive solid powders; featuring an insulated flexible cable for remote/separate installation.

Applications
Power Plant: Coal piles, raw coal bunkers, fuel silos, reservoirs, exhaust gas purification tanks, blow tanks, ash silos, oil tanks, etc.
Oil Field: Crude oil or refined oil storage tanks, three-phase separators, settling tanks, sewage tanks, oil/water interfaces, drilling mud tanks, etc.
Chemical Industry: Crude oil distillation columns, raw material and intermediate product silos, reaction vessels, ammonia water tanks, solid material bunkers, separators, etc.
Metallurgy: Ore bunkers, ore crushers, raw material silos, auxiliary material silos, blast furnaces, alumina powder silos, electrolytic cell buffer tanks, etc.
Cement: Aggregate bunkers, raw meal silos, cement silos, pulverized coal silos, slag storage bunkers, etc.
Water Treatment: Reservoirs, sewage basins, water treatment tanks, sedimentation tanks, deep wells, potable water networks, etc.
Paper Making: Raw material storage, storage towers, drying drums, chemical storage silos, etc.
Other Industries: Quarries, food, pharmaceuticals, environmental protection, shipbuilding, etc.
