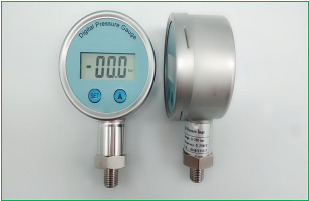

HC805 is a digital pressure gauge designed for battery power supply. It features a four-digit LCD display with white backlight, multiple units switching, direct on-site reading, and long service life
The gauge adopts a low-power processor chip, featuring automatic standby and one-button reset functions, and can replace mechanical pressure gauges for portable pressure measurement, equipment matching, and standard pressure calibration
Fields such as the petroleum industry, hydraulic and pneumatic systems, chemical industry, drinking water treatment, food machinery, high-pressure cleaning equipment, etc.

Feature
4-digit LCD display, white backlight, one-button reset function
On-site reading, easy to carry, battery-powered, low-power design

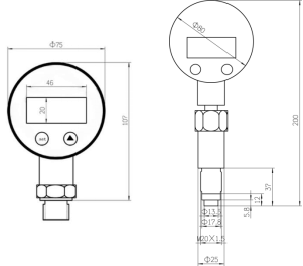

With a dial of 75mm outer diameter, it allows for free switching between multiple pressure units
Excellent vibration and shock resistance
Low temperature drift, high precision, long lifespan, stable and reliable performance
The EMC performance is excellent, meeting CE certification standards
Provide OEM services and accept customer customization
Applied to: food high-pressure experimental equipment, hydraulic and pneumatic systems, building automation, ships, petrochemical industry, mines, electricity, boilers and other equipment, as well as high-pressure cleaning equipment, etc

Technical Specifications
Measuring range: Sanitary grade 0-200MPa; General type: 0-150Mpa (optional)
Accuracy: ±0.5% F.S, ±1.0% F.S, ±1.5% F.S
Overload: 2 times full scale
Display mode: 4-digit LCD display
Operating temperature: -15℃ to +70℃
Relative humidity: <85%
Power supply: Built-in DC3V high-capacity lithium battery
Measuring medium: Liquid or gas compatible with 316L stainless steel
Pressure connection: M20×1.5, pressure plate type, (customizable)

Instructions for Use
This pressure gauge has three buttons: “ZERO”, “UNIT”, and “Light icon”
1: Press the ZERO button for 5 seconds to reset to zero. However, please do not press the ZERO button randomly for resetting. Only when the gauge fails to return to zero after a long period of time without pressure, can you press the ZERO button for resetting
zero
2: Long press the UNIT button for 5 seconds to turn off/turn on the device. Press the UNIT button once to switch units. To turn on, long press the UNIT button until numbers appear on the display. To turn off, long press the UNIT button again
The numbers on it disappear
3: Press the light icon button to display the backlight, which will automatically turn off after 10 seconds.
Notes:
1: When the pressure gauge is not being tested for a long time, please press and hold the UNIT button for 5 seconds to turn it off, which can extend the battery life. When testing is required, press and hold the UNIT button for 5 seconds again to turn it on
2: When the display on the pressure gauge fluctuates, it indicates that the battery needs to be replaced.
3: During installation and use, be careful not to let the pressure-sensing diaphragm of the pressure gauge collide with hard objects.
Instructions:
1. From the date of purchase, this product, if used normally and not dismantled or repaired, can be replaced within one month if confirmed by the warranty personnel to have a product quality issue, and will enjoy warranty service within one year
Provide maintenance.
2. This product has been inspected and found to comply with the JJG882-2004 standard. It has passed the inspection and is approved for use upon leaving the factory.
