Product Description:

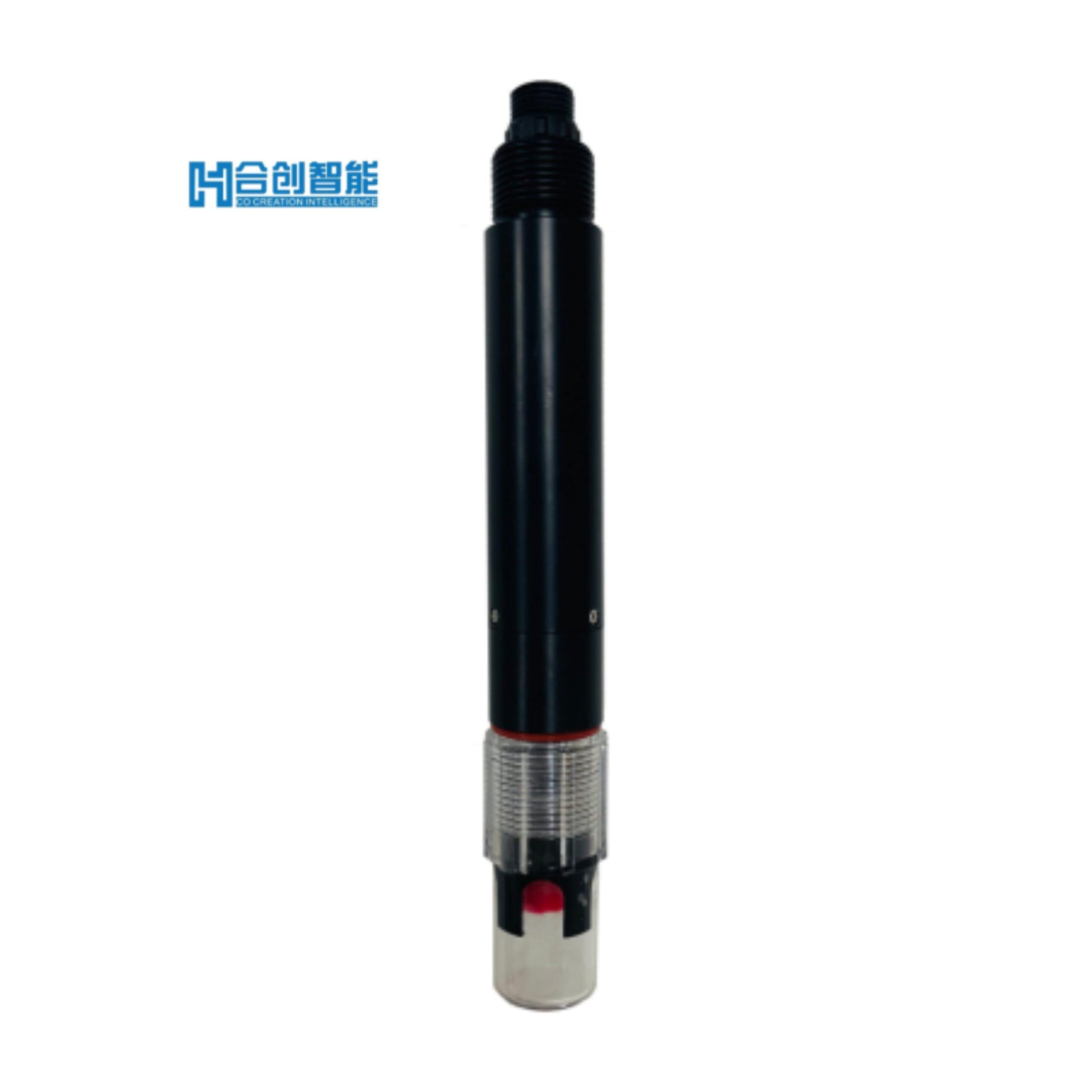

The integrated online fluoride ion sensor utilizes a PVC membrane-based fluoride ion selective electrode for detecting fluoride ion concentration in water. With automatic temperature compensation, it ensures fast, simple, accurate, and cost-effective measurements for various water monitoring applications.

Product Attributes:

Measurement Method：Ion Selective Method
Measurement Range：0-100 mg/L or 0-1000 mg/L (selectable, default: 0-100 mg/L)
Resolution：0.1 mg/L
Accuracy：±5% F.S.
Operating Temperature：0-50°C
Operating Pressure：<0.2 MPa
Temperature Compensation：Automatic (Pt100)
Power Supply：12-24 VDC
Output Signal：RS-485, Modbus/RTU protocol
Wetted Materials：PVC, POM
Installation：3/4″ NPT thread, immersion type
Cable Length：Standard 10 m (customizable)
Calibration：Two-point calibration
Power Consumption：<0.5 W
Protection Rating：IP68
