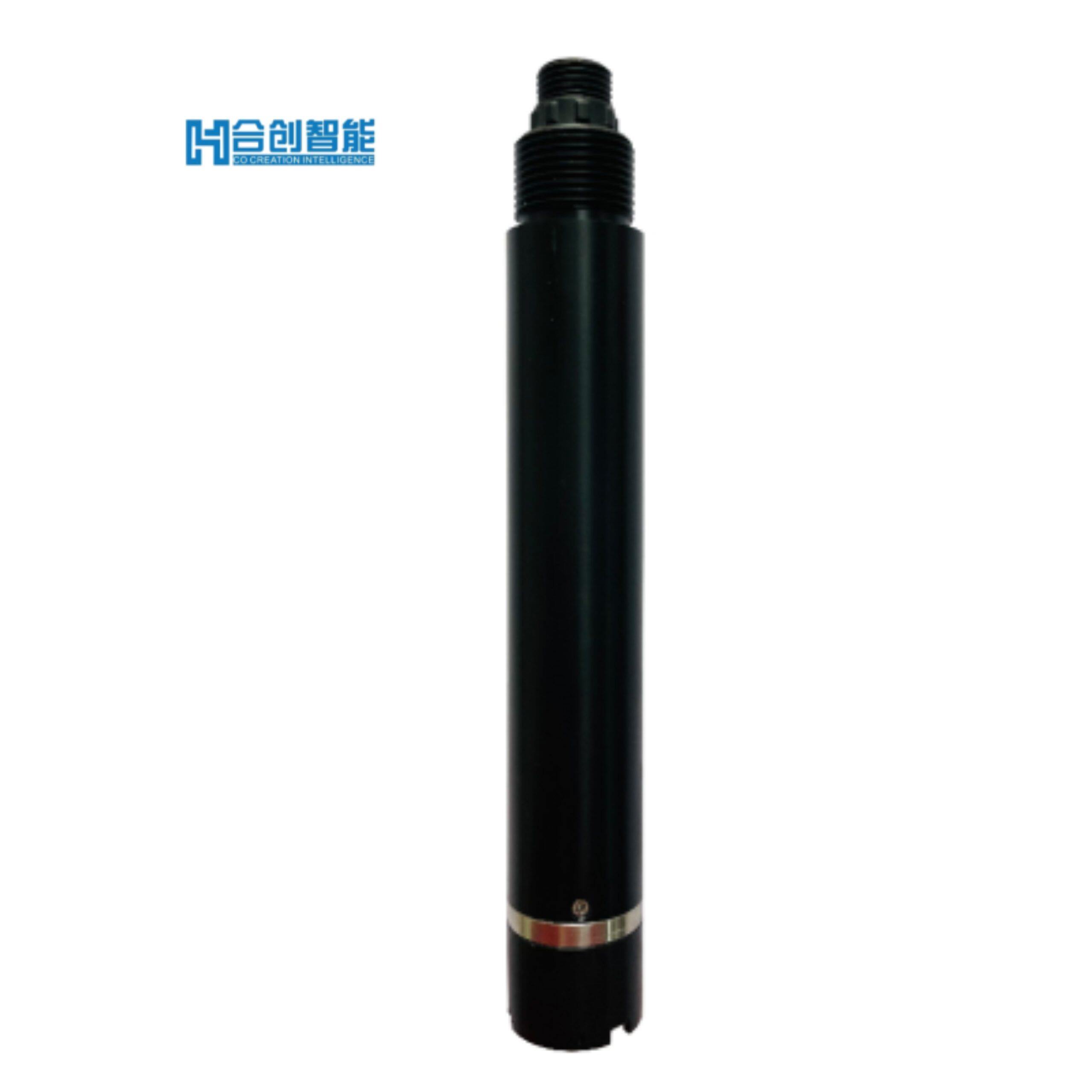

Product Description:

The fluorescence-based dissolved oxygen sensor operates by emitting blue light onto a fluorescent layer, which then emits red light. Oxygen concentration is inversely proportional to the fluorescence decay time. This optical measurement method consumes no oxygen during operation, ensuring stable data, reliable performance, and freedom from interferences, while offering simple installation and calibration.

Product Attributes:

Measurement Principle：Fluorescence Method
Measurement Range：0-20.00 mg/L
Resolution：0.01 mg/L, 0.1°C
Accuracy：±2% F.S., ±0.3°C
Temperature Compensation：Automatic (Pt1000)
Output：RS-485, MODBUS/RTU protocol
Operating Conditions：0-50°C, <0.2MPa
Storage Temperature：-5 to 65°C
Installation：Immersion type
Cable Length：Standard 10m (customizable)
Power Consumption：0.3W@12V
Power Supply：12-24 VDC
Protection Rating：IP68
Calibration：Two-point calibration
Sensor Life：1 year (normal use)
Housing Material：POM, 304 Stainless Steel

Installation & Maintenance:

• Mount at least 2cm from container bottom/sidewalls
• Clean sensor monthly (adjust based on environment)
• Replace fluorescent cap annually or when damaged
• Avoid direct sunlight exposure on fluorescent cap
• Perform waterproof treatment on all connections
