Product Description:

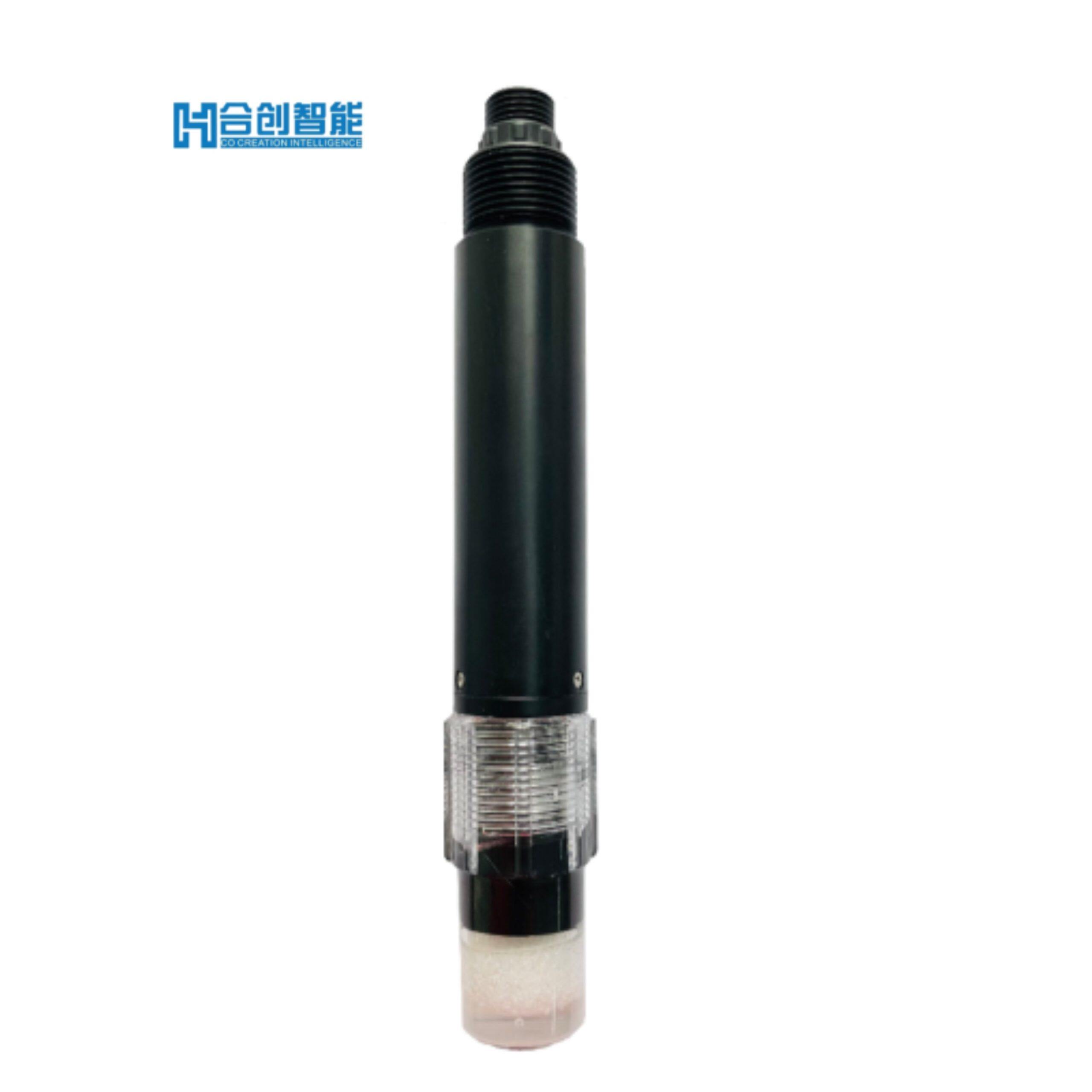

This industrial conductivity sensor employs advanced graphite electrode technology for reliable conductivity measurements in various water applications. Featuring automatic temperature compensation and RS-485 output with Modbus/RTU protocol, it ensures accurate and stable performance in continuous monitoring scenarios.

Product Attributes:

Measurement Method：Graphite Electrode Method

Measurement Range：0-5000 μS/cm
Resolution：1 μS/cm
Accuracy：±1.5% F.S.
Operating Temperature：0-50°C
Operating Pressure：<0.3 MPa
Power Supply：12-24 VDC
Output Signal：RS-485 (Modbus/RTU)
Housing Material：POM
Installation：Immersion type, 3/4″NPT pipe thread
Cable Length：Standard 10m (customizable)
Temperature Compensation：Automatic (Pt1000)
Calibration：Two-point calibration
Power Consumption：0.3W@12V
Protection Rating：IP68
