Product Description:

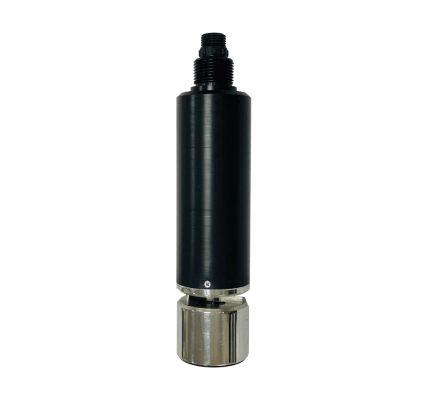

The Online UV-ABS COD and Turbidity Sensor utilizes dual-wavelength ultraviolet absorption technology to accurately measure chemical oxygen demand (COD) and turbidity in water. By employing a 254 nm UV light for organic pollutant detection and a reference light for turbidity measurement, the sensor effectively compensates for turbidity interference and minimizes the impact of suspended particles through advanced algorithms.

Product Attributes:

• Measurement Method: Dual-wavelength UV absorption
• COD Measurement Range: 0–500 mg/L equiv. KHP
• COD Accuracy: ±5% F.S. equiv. KHP
• COD Resolution: 0.1 mg/L
• Turbidity Range: 0–100 NTU
• Turbidity Accuracy: ±5% F.S.
• Turbidity Resolution: 0.1 NTU
• Operating Conditions: 0–50°C; <0.2 MPa
• Calibration: Two-point calibration
• Power Supply: 12–24 VDC
• Output Signal: RS-485, MODBUS/RTU protocol
• Protection Level: IP68
• Cable Length: Standard 10 m (customizable)
• Housing Material: POM, 304 stainless steel
• Connector Type: M16-4 pin waterproof male connector
