Product Description:

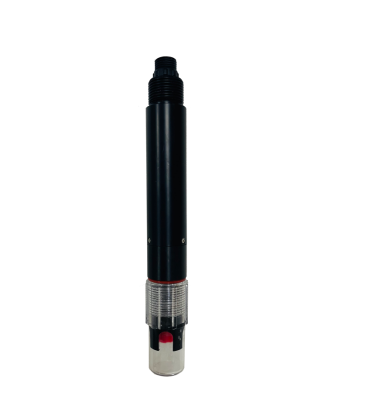

The integrated online chloride ion sensor employs a PVC membrane-based chloride ion selective electrode for detecting chloride ion concentration in water. With automatic temperature compensation and robust construction, it ensures reliable measurements in various monitoring applications.

Product Attributes:

Measurement Method：Ion Selective Method
Measurement Range：0-100 mg/L or 0-1000 mg/L (selectable)
Resolution：0.1 mg/L
Accuracy：±5% F.S.
Operating Temperature：0-50°C
Operating Pressure：<0.2 MPa
Temperature Compensation：Automatic (Pt100)
Power Supply：12-24 VDC
Output Signal：RS-485, Modbus/RTU protocol
Wetted Materials：PVC, POM
Installation：3/4″ NPT thread, immersion type
Cable Length：Standard 10 m (customizable)
Calibration：Two-point calibration
Power Consumption：<0.5 W
Protection Rating：IP68

Installation Notes:

• Do not install upside down or horizontally
• Minimum 15-degree inclination required
• All connections must be waterproofed
• Use corrosion-resistant cabling for long-term reliability
